Accepts Max 55v Input from Solar Panel !!!
|
|
 |
Free Postage to 229 Destinations Worldwide !!
FREE Promotional GIFT !!!
a Pair of MC4 Connector
(Worth US$ 5)
This promotional gift is offered by RetailGP.com
|
 |

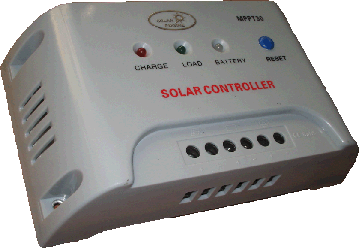

This product is controlled by CPU, having a perfect SOC management function, so they are able to control the charge current and decide whether to supply power to the loads according to the voltage of battery.
12V-24V automatically identified
48V also available
Features :
- Always keeps the battery on full voltage conditions.
- Prevents the battery from over-charging and over-discharging.
- Prevents the battery from reverse charging to solar panels during nights.
- Polarity Protection for battery and solar panel.
- When the current of the load exceeds the rated current of the controller, or if the load is short circuited, the controller will activate the protection mode and lock up.
- When the battery voltage is low, the controller will automatically cut off the load from the system. If the voltage of the battery is back to normal, the load will resume working.
- According to the battery voltage grade, the controller can automatically set the charge-off voltage, the load-off voltage, and the load-restore voltage.(The parameter default is under 25 C conditions, locked by the CPU procedure. It cannot be adjusted.)
- The controller will automatically compensate the temperature of the charging voltage according to the changes of ambient temperature.
Specification
Rated Voltage |
12V / 24V / 48V |
Max Load current |
20A |
30A |
40A |
50A |
60A |
Input current range (Open Circuit) |
12V～40V/24V～75V/48V～110V |
Length≤1m, Charge loop drop |
＜250mv |
Length≤1m, Discharge loop drop |
＜50mv |
Full charge cut |
13.7V / 27.4V / 54.8V |
Low voltage cut |
10.5～11V / 21V～22V / 42V～43V |
Temperature compensation |
-3mv/℃/cell |
No load loss |
≤20mA |
≤20mA |
≤30mA |
≤40mA |
≤45mA |
Efficiency |
95%—97% |
Max wire area |
4mm2 |
6mm2 |
8mm2 |
10mm2 |
12mm2 |
Ambient temperature |
-25℃—55℃ |
|
